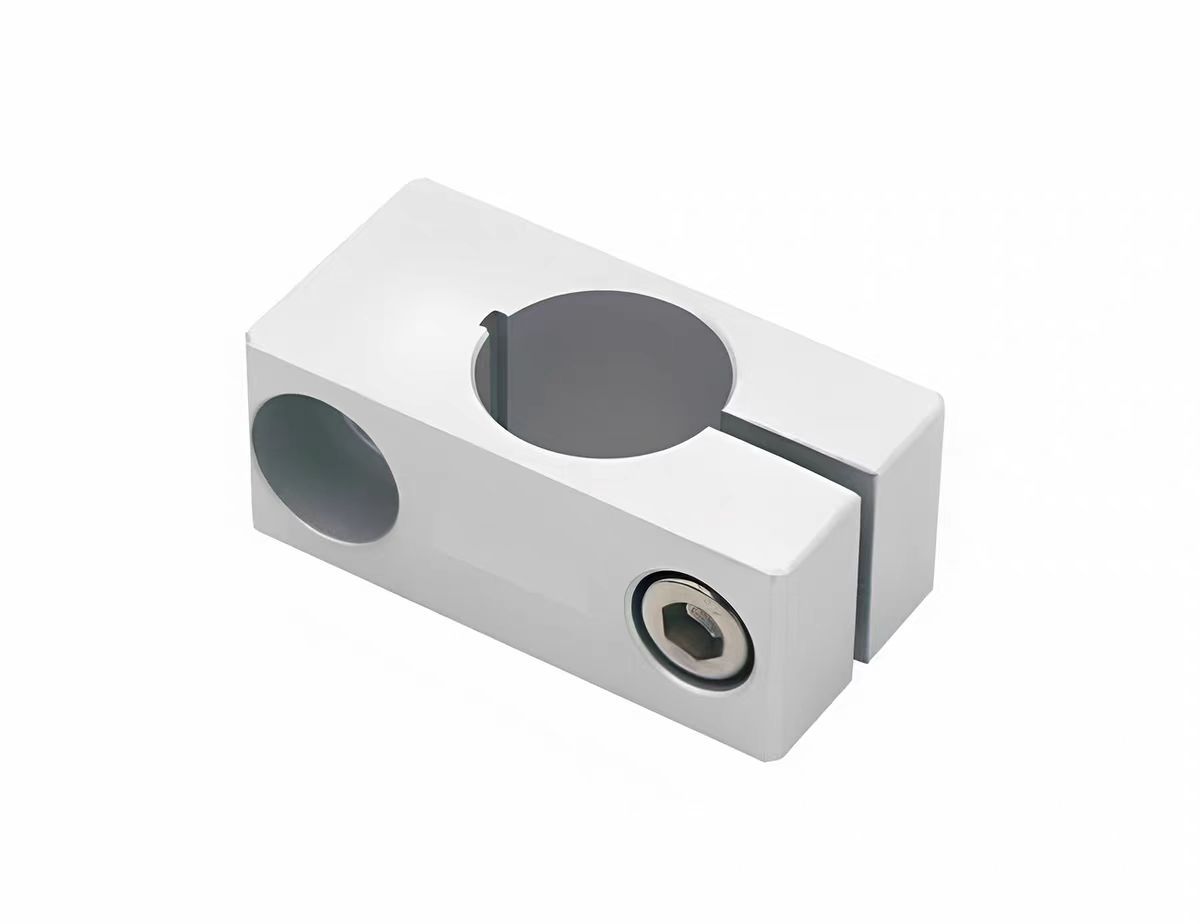

Access Robot Bracket

The mechanical hand fixing bracket is a crucial foundational component in the integration of robot systems, directly influencing the working range, operational stability, and final execution accuracy of the robot. Its core function is to provide a sturdy, reliable, and vibration-free installation base for the mechanical hand, ensuring that the robot can operate stably within its designed maximum load and speed, and maintain repetitive positioning accuracy.

Product Details

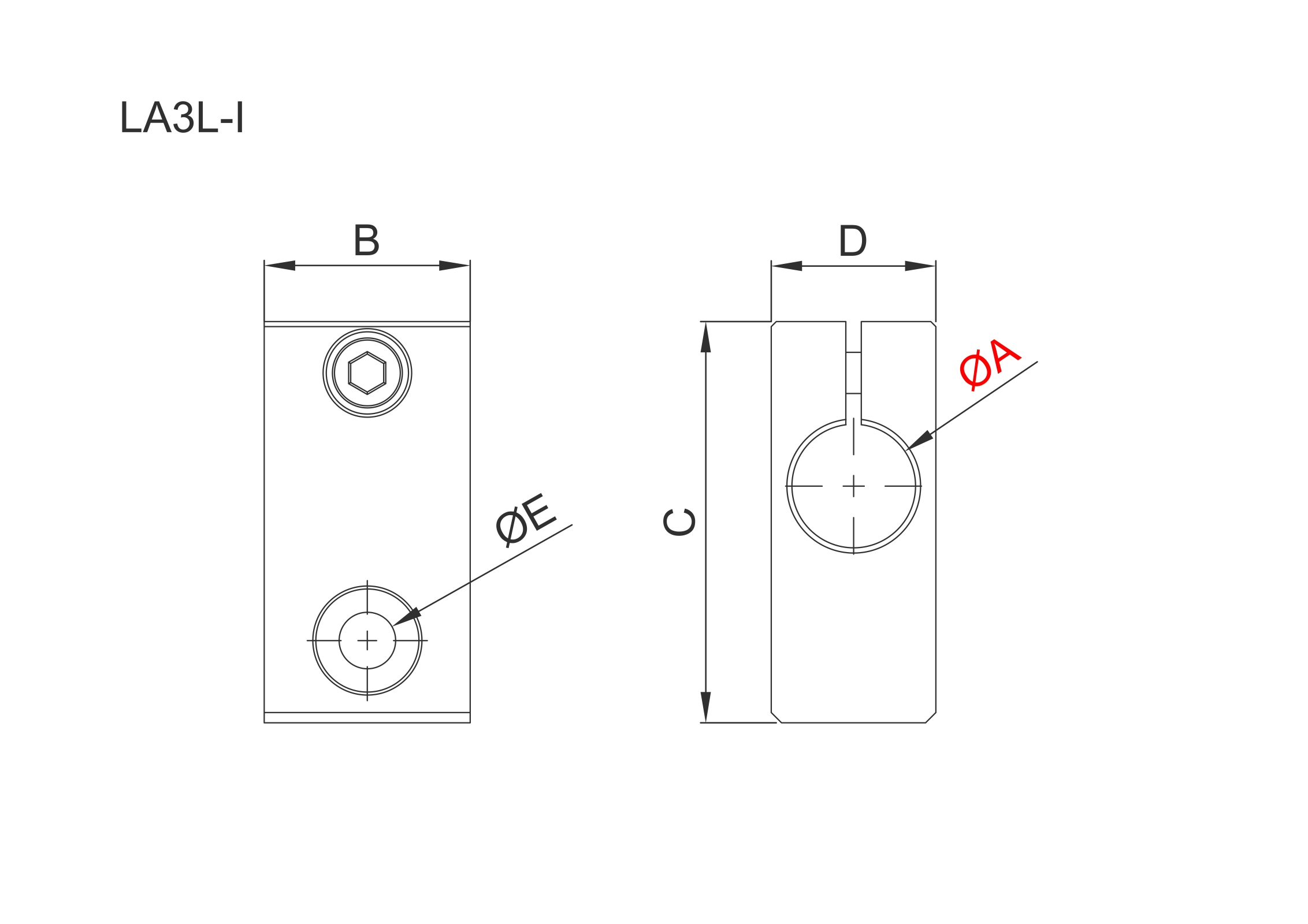

                          Model A(mm) B(mm) c(mm) D(mm) E(mm) Weight
0
LA3K-I8M5
Ø8 14 35 12 Ø5.5 15g
0
LA3K-I8M6
Ø8 14 35 12 Ø6.5 12g
0
LA3K-I12M5
Ø12 20 39 16 Ø5.5 30g
0
LA3K-I12M6
Ø12 20 39 16 Ø6.5 25g
0
LA3K-I12M8
Ø12 20 45 25 Ø9 42g
0
LA3K-I20M6
Ø20 20 50 25 Ø6.5 48g
0
LA3K-I20M8
Ø20 20 50 25 Ø9 51g
